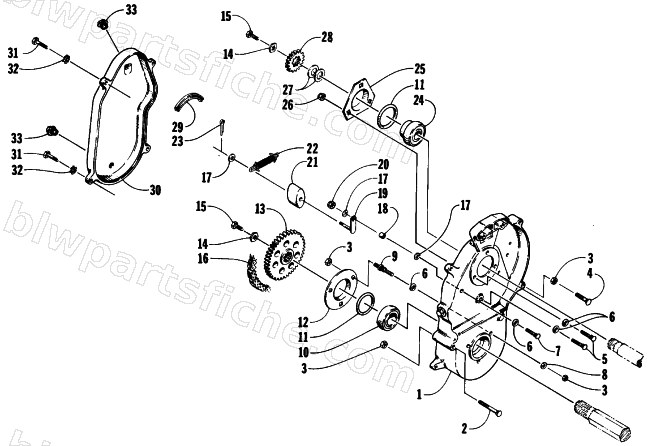

1990 Arctic Cat PROWLER — DRIVE/DROPCASE ASSEMBLY
1990 PROWLER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-078 | DROPCASE-W/PLUGS | 1 | $260.95 | |
| 2 | 8011-140 | BOLT,CRG 5/16-18X2.75 GR1 Z&Y | 1 | $0.65 | |
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 8011-137 | BOLT,CRG 5/16-18X2.0 GR1 Z&Y | 1 | $0.25 | |
| 5 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 6 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 7 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 8 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 9 | 0107-233 | STUD,DROPCASE | 1 | $33.95 | |
| 10 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 11 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 12 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 13 | 0107-220 | SPROCKET,39T-3/8 X.520 X 1.00 | 1 | $185.95 | |
| 13 | 0107-903 | SPROCKET,40T-3/8 X.520 | 1 | $211.95 | |
| 15 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 16 | 0107-216 | CHAIN,70 PITCH-SILENT | 1 | $101.95 | |
| 17 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 18 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 19 | 0107-226 | PIN & LINK ASS'Y,TIGHTENER | 1 | $18.95 | |
| 20 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 21 | 0107-228 | PAD,TIGHTENER | 1 | $17.95 | |
| 22 | 0707-026 | SPRING, TIGHTENER | 1 | $27.95 | |
| 23 | 0123-082 | PIN, COTTER - 1/16 X 5/8 | 1 | $0.15 | |
| 24 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 26 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 27 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 28 | 0107-409 | SPROCKET,20T-3/8 X.520 X7/8 | 1 | $66.95 | |
| 28 | 0107-341 | SPROCKET-18T | 1 | $167.95 | |
| 29 | 0107-214 | SEAL,DROPCASE COVER | 1 | $21.95 | |
| 31 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 0623-293 | PLUG, DRAIN | 1 | $2.61 |
