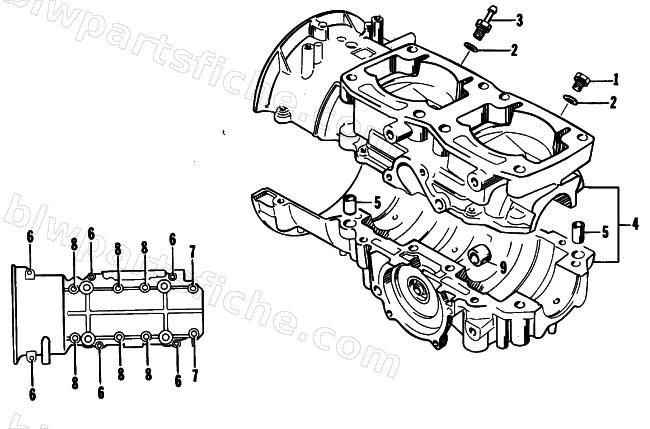

CRANKCASE ASSEMBLY
1990 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 4 | 3003-645 | CRANKCASE ASSY (44C L/C LW) | 1 | $575.95 | |
| 5 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 6 | 3007-411 | BOLT | 1 | $3.16 | |
| 7 | 3007-408 | BOLT | 1 | $4.26 | |
| 8 | 3004-414 | BOLT, 8X70 | 1 | $3.85 | |
| 9 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 |
