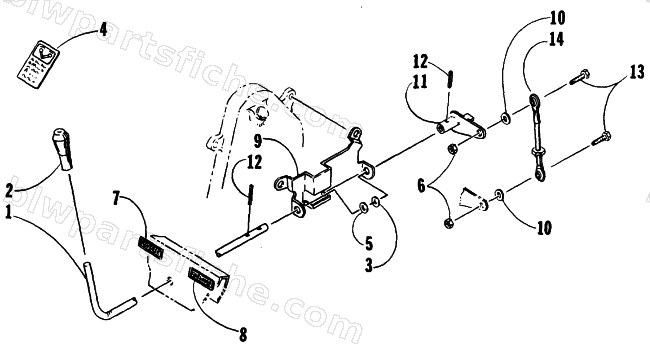

1990 Arctic Cat JAG DELUXE — REVERSE SHIFT LEVER ASSEMBLY
1990 JAG DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0602-161 | LEVER,SHIFT | 1 | $51.95 | |
| 2 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 3 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 | |
| 4 | 1611-444 | DECAL,CAUTION-REVERSE | 1 | $21.95 | |
| 5 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 6 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0602-128 | BRACKET,SHIFT LEVER MTG | 1 | $32.95 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 0702-054 | ARM,SHIFT LEVER-WELDMENT | 1 | $31.95 | |
| 12 | 8070-314 | PIN,SPRING-3/16 X 1 SLOTTED P&O | 1 | $0.95 | |
| 13 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 |
