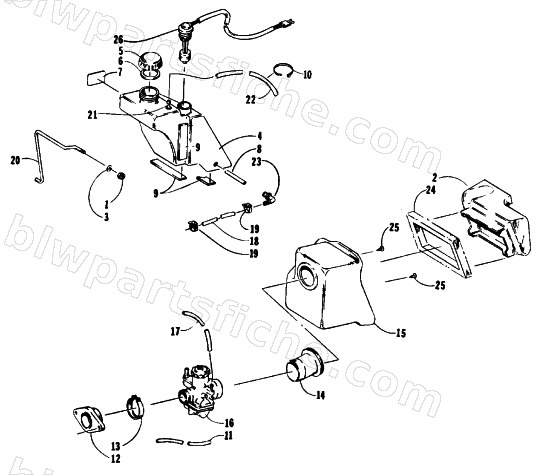

1990 Arctic Cat JAG AFS DELUXE — OIL TANK, CARBURETOR, AND AIR SILENCER ASSEMBLY
1990 JAG AFS DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-079 | EXTENSION,OIL TANK FITTING | 1 | $14.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 13 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 14 | 0170-206 | BOOT,SILENCER | 1 | $29.95 | |
| 15 | 0670-039 | SILENCER,AIR-FABR | 1 | $66.95 | |
| 16 | 0670-067 | CARBURETOR,VM34-386 JAFS | 1 | $325.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 19 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 21 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 22 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 23 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 25 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 26 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 |
