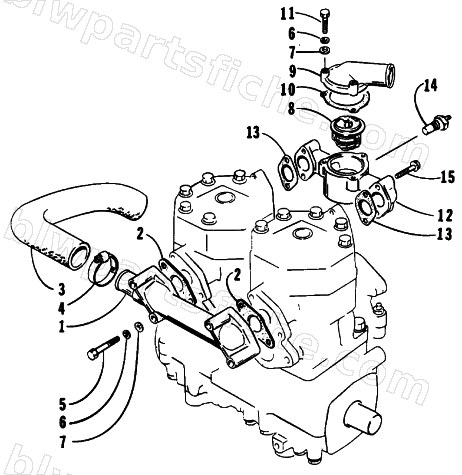

1990 Arctic Cat EL TIGRE EXT SPECIAL — WATER INTAKE AND THERMOSTAT MANIFOLDS
1990 EL TIGRE EXT SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-239 | MANIFOLD, H2O INTK | 1 | $111.95 | |
| 2 | 3003-512 | GASKET,WATER INTAKE MANIFOLD NON-ASBESTO | 1 | $6.95 | |
| 3 | 3005-318 | HOSE, WATER INTAKE MANIFOLD | 1 | $68.95 | |
| 4 | 3004-786 | CLAMP,M38 | 1 | $27.95 | |
| 5 | 3007-841 | BOLT,HEX M6-1X45 | 1 | $3.44 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 7 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 8 | 3003-701 | THERMOSTAT,WATER | 1 | $92.95 | |
| 9 | 3003-241 | CAP, THERMOSTAT | 1 | $22.95 | |
| 10 | 3003-513 | GASKET,THERMOSTAT CAP NON-ASBESTOS | 1 | $16.49 | |
| 11 | 3003-050 | BOLT, HEX M6-1X30 | 1 | $3.44 | |
| 12 | 3003-240 | MANIFOLD, THERMO | 1 | $533.95 | |
| 13 | 3004-260 | GASKET, THERMOSTAT MANIFOLD | 1 | $17.87 | |
| 14 | 0720-011 | SENSOR, HEAT- L/C | 1 | $60.95 | |
| 15 | 3007-381 | BOLT | 1 | $3.16 |
