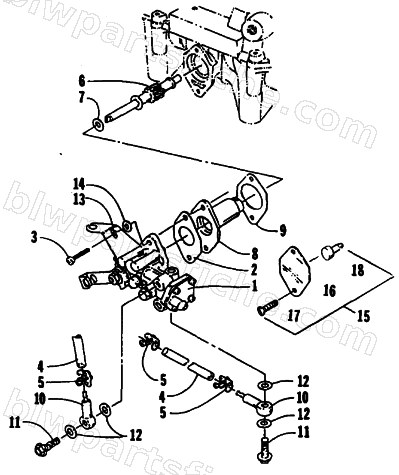

OIL PUMP
1990 EL TIGRE EXT SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-349 | GASKET, OIL PUMP | 1 | $12.35 | |
| 3 | 3003-307 | BOLT,5X20 | 1 | $4.95 | |
| 4 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 5 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 6 | 3002-770 | GEAR,OIL PUMP DRIVEN | 1 | $94.95 | |
| 7 | 3002-749 | SHIM,M7 | 1 | $2.06 | |
| 8 | 3003-749 | RETAINER,OIL PUMP | 1 | $120.95 | |
| 9 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 10 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 11 | 3002-753 | UNION CHECK VALVE | 1 | $14.95 | |
| 12 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 13 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 14 | 3004-649 | WASHER,5MM | 1 | $4.29 | |
| 17 | 0670-101 | PLUG,OIL PUMP | 1 | $20.63 | |
| 18 | 3007-695 | SCREW,5X12 | 1 | $2.47 |
