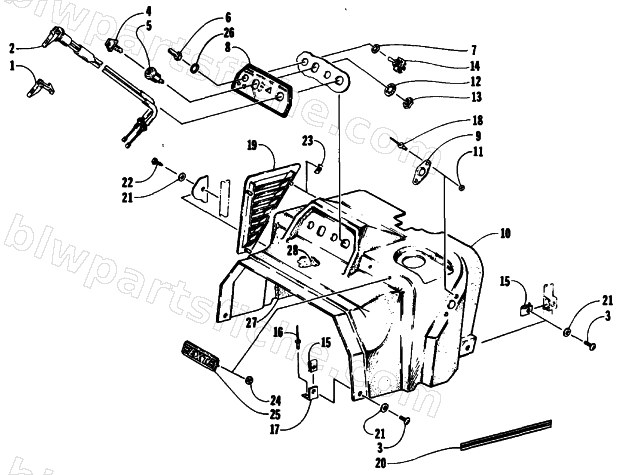

1990 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — SWITCH AND CONSOLE ASSEMBLY
1990 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 2 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 4 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 5 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 6 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0611-536 | PLATE,CONSOLE-SWITCHES | 1 | $34.95 | |
| 9 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 10 | 0706-487 | CONSOLE,BLACK-ROUTED | 1 | $198.95 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 13 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 14 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 15 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 16 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 18 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 19 | 0606-429 | VENT,CONSOLE-BLACK | 1 | $43.95 | |
| 20 | 0611-636 | DECAL,STRIPE-CONSOLE | 1 | $3.95 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 0623-190 | SCREW,SELF TAP 1/4-20X3/4 TYPE F | 1 | $1.09 | |
| 23 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 24 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 25 | 0611-531 | PLATE,NAME EXT PLASTIC | 1 | $50.95 | |
| 26 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 |
