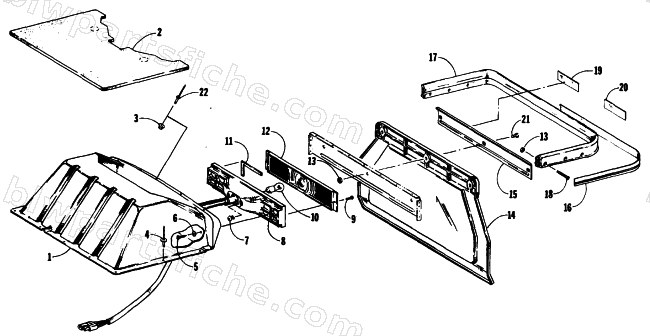

1990 Arctic Cat COUGAR — TOOLBOX, TAILLIGHT AND REAR BUMPER
1990 COUGAR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0606-025 | TOOLBOX | 1 | $136.95 | |
| 3 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 4 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 5 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 6 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 7 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0606-505 | SNOWFLAP-30 DG CHROME-PLASTIC | 1 | $91.95 | |
| 16 | 0611-389 | DECAL,REAR BUMPER | 1 | $33.95 | |
| 18 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 19 | 0212-133 | DECAL,TOWING CAUTION FRENCH | 1 | $8.95 | |
| 20 | 0212-271 | DECAL,CAUTION TOWING | 1 | $8.95 | |
| 21 | 8011-071 | BOLT,CRG 1/4-20X.875 GR1 BLK | 1 | $0.25 | |
| 22 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
