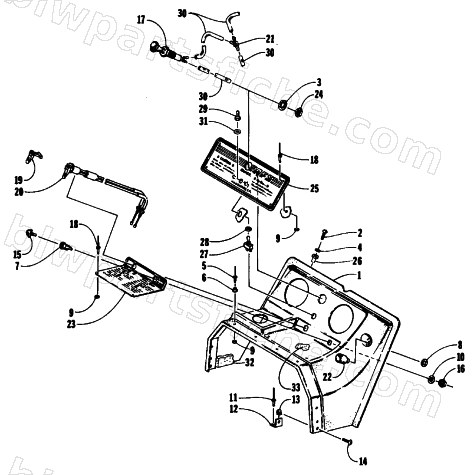

1990 Arctic Cat COUGAR — SWITCH, CHOKE, AND CONSOLE ASSEMBLY
1990 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 3 | 0623-017 | WASHER,INT STAR3/4 | 1 | $0.95 | |
| 4 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 5 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 6 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 7 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 8 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 9 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 10 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 15 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 16 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 18 | 8060-266 | RIVET,BLIND-DH AS44 BLK | 1 | $0.15 | |
| 19 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 20 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 21 | 0670-013 | TEE,1/8 X 1/8 X 1/8 | 1 | $2.95 | |
| 22 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 23 | 0611-632 | PLATE,CONSOLE-IGNITION | 1 | $40.95 | |
| 25 | 0611-614 | PLATE,INSTRUMENT | 1 | $45.95 | |
| 26 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 27 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 28 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 29 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 30 | 0610-012 | HOSE, PRIMER 25' | 1 | $126.95 | |
| 31 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 |
