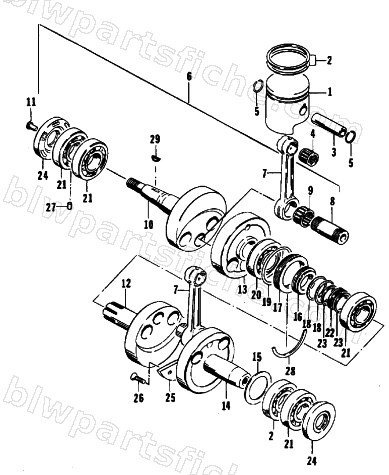

PISTON AND CRANKSHAFT
1990 COUGAR MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-817 | PISTON ASSY-500 FC | 1 | $295.95 | |
| 2 | 3003-548 | RING SET,500F/C | 1 | $113.95 | |
| 3 | 3002-647 | PIN,PISTON | 1 | $38.95 | |
| 4 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 5 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 6 | 3003-401 | CRANKSHAFT ASSEMBLY 500 F/C | 1 | $1,748.95 | |
| 7 | 3002-166 | ROD CONNECTING | 1 | $277.95 | |
| 8 | 3002-173 | PIN,CRANK | 1 | $73.95 | |
| 9 | 3003-170 | BEARING, ROD,ROLLER,M22,28,15.8 | 1 | $43.95 | |
| 11 | 3002-721 | BUSHING,TACHOMETER | 1 | $30.95 | |
| 12 | 3002-794 | CRANKSHAFT,MIDDLE | 1 | $485.95 | |
| 14 | 3003-402 | CRANKSHAFT, L.H. | 1 | $589.95 | |
| 15 | 3002-025 | WASHER,M34X47X1 | 1 | $2.75 | |
| 16 | 3002-797 | RACE,CRANK SEAL-INNER | 1 | $44.95 | |
| 17 | 3002-798 | RETAINER,CRANK SEAL | 1 | $158.95 | |
| 18 | 3003-112 | RING, CENTER | 1 | $23.39 | |
| 19 | 3004-818 | O-RING | 1 | $4.40 | |
| 20 | 3006-095 | BEARING,'02 440 F/C SNO PRO | 1 | $126.95 | |
| 21 | 3002-624 | BEARING,CRANKSHAFT,BALL,M30X65X16 | 1 | $96.95 | |
| 22 | 3005-373 | GEAR, OIL PUMP DRIVE | 1 | $94.95 | |
| 23 | 3002-827 | SPACER,M30 | 1 | $22.95 | |
| 24 | 3002-717 | SEAL,CRANKSHAFT-M30 | 1 | $49.95 | |
| 25 | 3003-403 | BALANCER (PISTON/CRANK.) | 1 | $40.95 | |
| 26 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 27 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 28 | 3003-736 | C-RING,CRANKSHAFT,M65 | 1 | $13.95 | |
| 29 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
