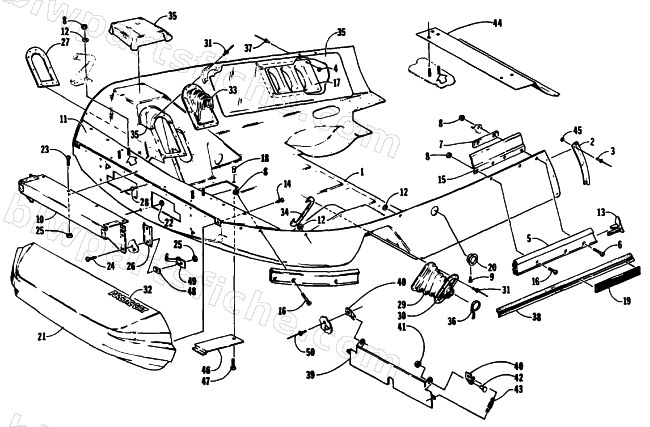

1989 Arctic Cat WILDCAT MOUNTAIN CAT — BELLY PAN AND NOSE CONE ASSEMBLIES
1989 WILDCAT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-531 | BELLYPAN W/O EXHAUST HOLE | 1 | $754.95 | |
| 2 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 3 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 0706-029 | BUMPER,LH FRONT | 1 | $116.95 | |
| 5 | 0706-026 | BUMPER, RH FRONT | 1 | $167.95 | |
| 6 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-016 | SCREW,SELF TAP #10-24X1 | 1 | $0.45 | |
| 10 | 0706-056 | BUMPER,FRONT-ASSY | 1 | $180.95 | |
| 11 | 0706-189 | SUPPORT,HINGE-BELLYPAN | 1 | $126.95 | |
| 12 | 0124-076 | WSHR, FLAT .271X.635X.051 BL PHOS AND OI | 1 | $0.15 | |
| 16 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 17 | 0706-089 | LOUVER,PAINT BLACK | 1 | $37.95 | |
| 18 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 23 | 8007-397 | SCREW,MACH-CRTH 10-24X.50 G2 Z&Y | 1 | $0.15 | |
| 24 | 8007-400 | SCREW,MACH-CRTH 10-24X.75 G2 Z&Y | 1 | $0.40 | |
| 25 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 26 | 0606-044 | PLATE, BACKING | 1 | $3.95 | |
| 27 | 0603-053 | RING, SUSPENS BT | 1 | $23.39 | |
| 28 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 30 | 0605-092 | RING,STEERING BOOT | 1 | $21.95 | |
| 31 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 32 | 0611-249 | DECAL,ARCTIC CAT-GREEN | 1 | $20.95 | |
| 34 | 0605-091 | RING,REINFORCEMENT-STRG BOOT | 1 | $24.77 | |
| 35 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 38 | 0611-450 | DECAL,FRONT BUMPER-RH | 1 | $38.95 | |
| 39 | 0606-581 | DOOR,VENT-FRONT | 1 | $17.95 | |
| 40 | 0606-280 | BRACKET,HINGE-RH FRONT | 1 | $14.95 | |
| 40 | 0606-281 | BRACKET,HINGE-LH FRONT | 1 | $14.95 | |
| 43 | 0623-100 | SPRING,DOOR-BELLY PAN VENT | 1 | $3.95 | |
| 44 | 0606-289 | SHIELD,HEAT-FRONT SUSPENSION | 1 | $53.95 | |
| 45 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 46 | 0606-390 | PLATE,INSPECTION-BELLY PAN | 1 | $13.73 | |
| 47 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 49 | 0623-135 | RETAINER,DOOR-NOSECONE | 1 | $3.95 | |
| 50 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
