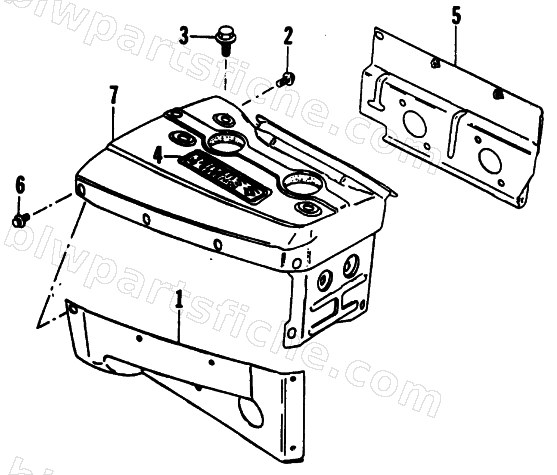

1989 Arctic Cat JAG 340 — CYLINDER COWLING
1989 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-779 | COWLING,VENT-FRONT | 1 | $25.95 | |
| 2 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 3 | 3007-432 | BOLT | 1 | $3.44 | |
| 5 | 3003-280 | COWLING,VENT-REAR | 1 | $35.95 | |
| 6 | 3007-457 | BOLT | 1 | $3.16 | |
| 7 | 3002-778 | COWLING,VENT-UPPER | 1 | $178.95 |
