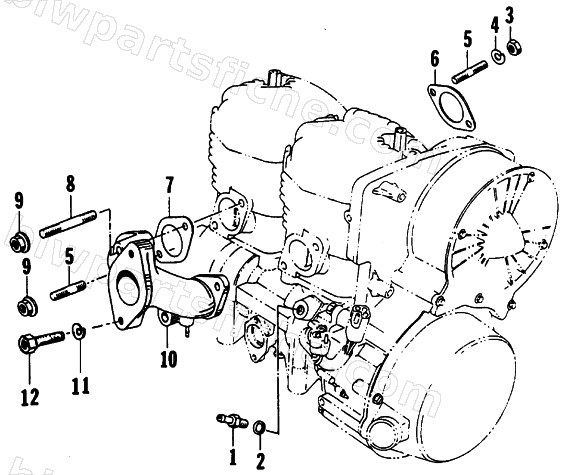

INTAKE MANIFOLD
1989 JAG 340 DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 5 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 6 | 3004-323 | GASKET, EXHAUST | 1 | $23.39 | |
| 7 | 3004-322 | GASKET, INTAKE | 1 | $13.73 | |
| 8 | 3423-203 | STUD BOLT, M8X50 (RB 3423-862) | 1 | $5.95 | |
| 9 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 10 | 3003-719 | MANIFOLD,INTAKE W/PRIMER | 1 | $386.95 | |
| 11 | 0623-041 | WASHER,SPIRNG-.331IDX.591ODX.030THK | 1 | $0.25 | |
| 12 | 0623-116 | BOLT,SOCKET LOW HEAD M8 X 1.25 X 25 Y&Z | 1 | $4.95 |
