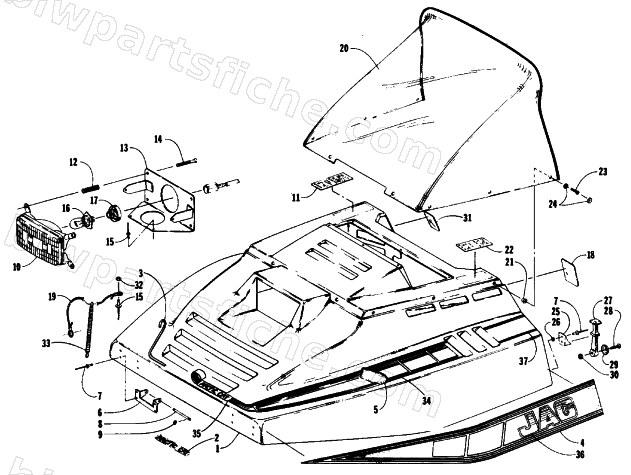

1989 Arctic Cat JAG 340 DELUXE — HOOD ASSEMBLY
1989 JAG 340 DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-069 | HOOD W/DECALS-89 JAG DLX | 1 | $1,040.95 | |
| 2 | 0611-249 | DECAL,ARCTIC CAT-GREEN | 1 | $20.95 | |
| 4 | 0611-355 | DECAL,HOOD-LH | 1 | $62.95 | |
| 4 | 0611-356 | DECAL,HOOD-RH | 1 | $64.95 | |
| 5 | 0617-001 | FOAM, HOOD L.H. | 1 | $14.95 | |
| 6 | 0117-132 | HINGE HOOD UPPER | 1 | $13.73 | |
| 6 | 0117-133 | HINGE HOOD UPPER LH | 1 | $13.73 | |
| 8 | 0107-838 | PIN HINGE | 1 | $41.95 | |
| 9 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 12 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 13 | 0117-688 | HOUSING HEADLIGHT-WLDMT | 1 | $42.95 | |
| 14 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 15 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 16 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 17 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 21 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 26 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 27 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 28 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 29 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 30 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 31 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 33 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 34 | 0611-367 | DECAL,HOOD DECK-LH | 1 | $55.95 | |
| 34 | 0611-366 | DECAL,HOOD DECK-RH | 1 | $55.95 | |
| 35 | 0611-368 | DECAL,HOOD DECK-CENTER FRONT | 1 | $26.95 | |
| 36 | 0611-357 | DECAL, JAG NAME | 1 | $68.95 | |
| 37 | 0611-493 | PINSTRIPE,1/8MED SIL MET/1/8 SL MET,25'R | 1 | $43.95 |
