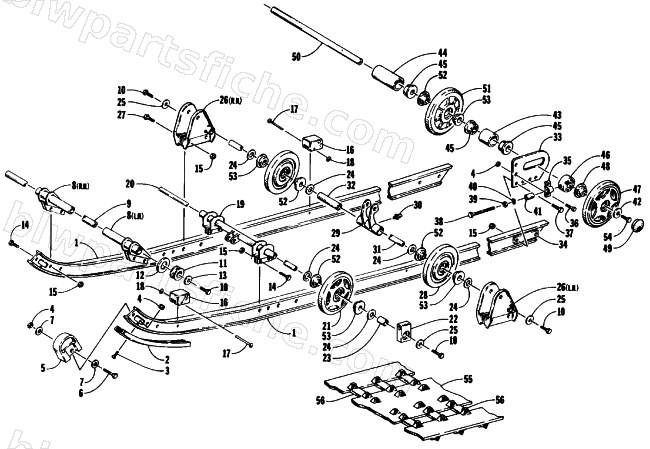

1989 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — SLIDE RAIL AND TRACK ASSEMBLY
1989 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-318 | RAIL,SLIDE-FORMED-GOLD | 1 | $239.95 | |
| 3 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 0704-052 | BRKT,FRONT CROSSBRACE-RH WELDT | 1 | $104.95 | |
| 8 | 0704-053 | BRKT,FRONT CROSSBRACE-LH WELDT | 1 | $88.95 | |
| 9 | 0604-252 | AXLE,FRONT CROSSBRACE | 1 | $81.95 | |
| 10 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 11 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 12 | 0604-302 | SPACER,ROLLER-FRONT SPRING | 1 | $4.95 | |
| 13 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 14 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 17 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 18 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 19 | 1704-197 | CROSS BRACE,AUX.WHEEL-PTD BLK | 1 | $177.95 | |
| 20 | 0604-280 | AXLE,CROSS-FRONT SHOCK | 1 | $63.95 | |
| 21 | 0604-239 | WHEEL,IDLER 'GOLD' SPOK | 1 | $54.95 | |
| 22 | 0604-285 | SLIDE,SPRING | 1 | $2.95 | |
| 23 | 0604-294 | SPACER,SPRING SLIDE | 1 | $18.95 | |
| 24 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 25 | 0623-140 | WASHER,FLAT .344X.875X.120 | 1 | $0.68 | |
| 26 | 0704-054 | BRKT,MOUNTING-FRONT ARM-RH | 1 | $62.95 | |
| 26 | 0704-055 | BRKT,MOUNTING-FRONT ARM-LH | 1 | $97.95 | |
| 27 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 28 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 29 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 30 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 31 | 0604-297 | AXLE,IDLER WHEEL-10.750 | 1 | $60.95 | |
| 32 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 33 | 0604-271 | HOUSING,REAR AXLE | 1 | $92.95 | |
| 34 | 0604-152 | SPACER,REAR AXLE HOUSING | 1 | $7.95 | |
| 35 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 36 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 37 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 38 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 39 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 40 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 41 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 42 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 44 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 45 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 46 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 47 | 1604-686 | WHEEL,IDL-7.12(2-5/8DIA INSR) | 1 | $49.95 | |
| 48 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 49 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 50 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 51 | 1604-971 | WHEEL,IDL-7.12 SPOKED(1L-5/8DI INSR)SILV | 1 | $51.95 | |
| 52 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 53 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 54 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 55 | 0602-754 | TRACK,15X136X.725,2/3-17 NYL | 1 | $714.95 | |
| 56 | 0102-255 | CLIP,GUIDE-TRACK | 1 | $2.95 |
