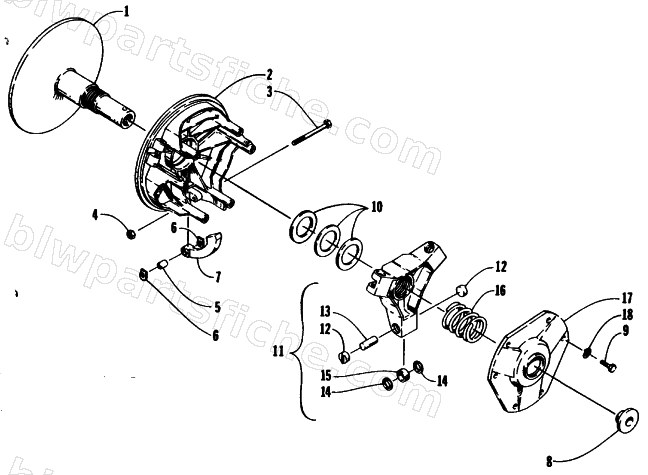

1989 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — DRIVE CLUTCH
1989 EL TIGRE EXT MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 0 | 0725-069 | CLUTCH, DRIVE-ASSY (COMET) | 1 | $1,056.95 | |
| 1 | 0646-103 | SHEAVE,STATIONARY | 1 | $432.95 | |
| 2 | 0646-104 | SHEAVE,MOVEABLE W/BEARING | 1 | $466.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0646-098 | ARM,CAM-LOW ALT | 1 | $58.95 | |
| 7 | 0746-500 | ARM,CAM W/BRG 54.0 GR | 1 | $16.49 | |
| 7 | 0746-527 | ARM,CAM-50.5 GRAM W/BRNG | 1 | $16.49 | |
| 8 | 0146-461 | WASHER PLT | 1 | $21.95 | |
| 9 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 10 | 0146-452 | SPACER | 1 | $4.95 | |
| 12 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 13 | 0146-454 | PIN | 1 | $6.95 | |
| 15 | 0146-456 | ROLLER W/BRNG | 1 | $66.95 | |
| 16 | 0646-097 | SPRING,CLUTCH-BLUE/RED | 1 | $47.95 | |
| 17 | 0646-092 | PLATE, COVER W/BEARI | 1 | $88.95 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 |
