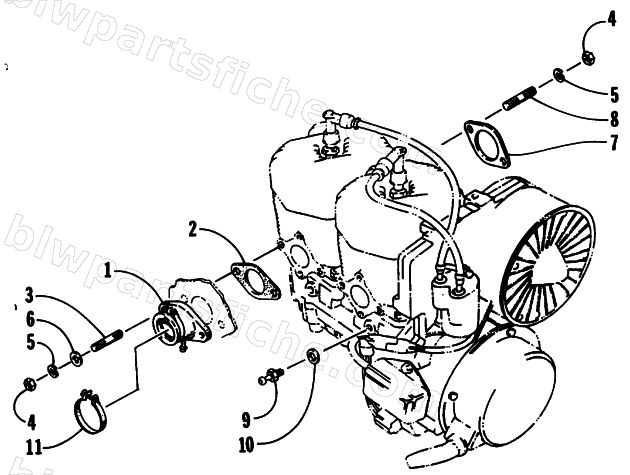

1989 Arctic Cat COUGAR — INTAKE ASSEMBLY
1989 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-587 | FLANGE,CARB-34MM | 1 | $82.95 | |
| 2 | 3003-506 | GASKET,CARBURETOR NON-ASBESTOS | 1 | $28.95 | |
| 3 | 3002-124 | STUD BOLT,M8 X 35 | 1 | $2.61 | |
| 4 | 3007-416 | NUT | 1 | $2.75 | |
| 5 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 6 | 3423-204 | WASHER | 1 | $1.95 | |
| 7 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 8 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 9 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 10 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 |
