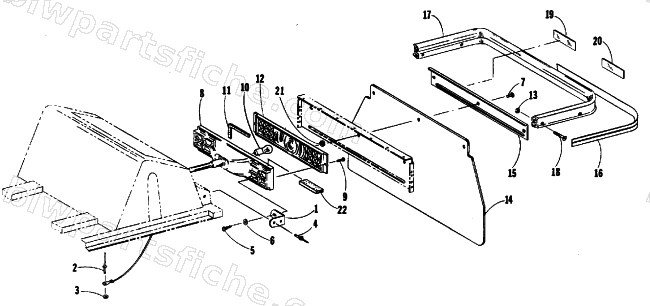

1988 Arctic Cat WILDCAT 650 (650 L/C) — TOOLBOX, TAILLIGHT AND REAR BUMPER
1988 WILDCAT 650 (650 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 3 | 8052-122 | WASHER,LOCK-NO.8 INTL TOOTH TYP A Z&Y | 1 | $0.40 | |
| 4 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 5 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 6 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 7 | 8011-070 | BOLT,CRG 1/4-20X.75 GR1 BLK | 1 | $0.26 | |
| 8 | 0709-009 | TAILLIGHT ASSY | 1 | $205.95 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 0611-285 | TAPE,REAR BUMPER | 1 | $29.95 | |
| 18 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
