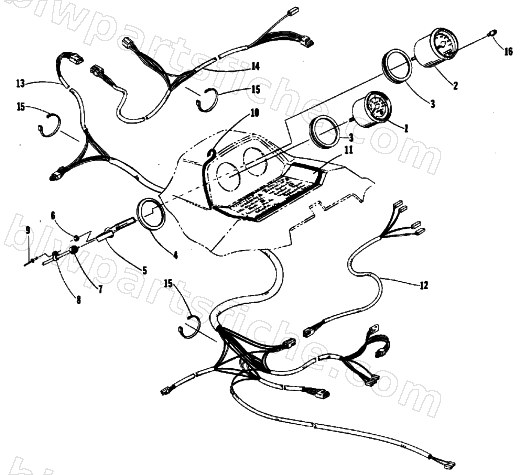

1988 Arctic Cat WILDCAT 650 (650 L/C) — INSTRUMENTS, CONSOLE, AND WIRING ASSEMBLIES
1988 WILDCAT 650 (650 L/C)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-021 | TACHOMETER W/OIL | 1 | $407.95 | |
| 2 | 0620-028 | SPEEDOMETER | 1 | $378.95 | |
| 3 | 0120-362 | CUSHION RUBBER | 1 | $11.95 | |
| 4 | 0120-361 | PLATE,RETAINING | 1 | $5.95 | |
| 5 | 0120-457 | BRACKET,SPEEDOMETER-MTG | 1 | $17.87 | |
| 5 | 0120-281 | BRACKET,MTG-TACHOMETER | 1 | $13.73 | |
| 6 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 7 | 0620-030 | CABLE,SPEEDOMETER | 1 | $60.95 | |
| 8 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 9 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 12 | 0686-026 | HARNESS,CONSOLE | 1 | $49.95 | |
| 13 | 0686-025 | HARNESS,MAIN WIRING | 1 | $125.95 | |
| 14 | 0686-024 | HARNESS,HEADLIGHT | 1 | $42.95 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0620-034 | KNOB,TRIPMETER | 1 | $8.95 |
