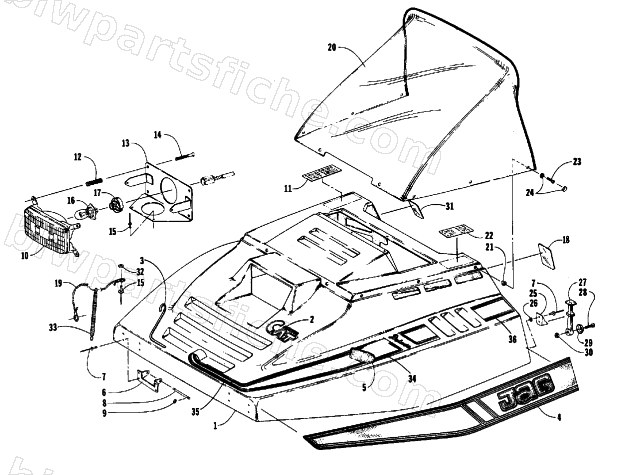

1988 Arctic Cat JAG DELUXE (340 F/C) — HOOD ASSEMBLY
1988 JAG DELUXE (340 F/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-040 | HOOD W/DECALS-88 JAG DLX | 1 | $1,040.95 | |
| 2 | 0611-251 | DECAL, ARCTIC CAT (GREEN) | 1 | $24.95 | |
| 4 | 0611-221 | DECAL,HOOD DECK-LH | 1 | $50.95 | |
| 4 | 0611-222 | DECAL,HOOD DECK-RH | 1 | $50.95 | |
| 5 | 0617-001 | FOAM, HOOD L.H. | 1 | $14.95 | |
| 6 | 0117-132 | HINGE HOOD UPPER | 1 | $13.73 | |
| 6 | 0117-133 | HINGE HOOD UPPER LH | 1 | $13.73 | |
| 8 | 0107-838 | PIN HINGE | 1 | $41.95 | |
| 9 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 12 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 13 | 0117-688 | HOUSING HEADLIGHT-WLDMT | 1 | $42.95 | |
| 14 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 15 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 16 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 17 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 18 | 0611-180 | DECAL,GAS WARNING | 1 | $10.95 | |
| 21 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 26 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 27 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 28 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 29 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 30 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 31 | 0611-306 | DECAL,WRNG-BATTERY | 1 | $4.95 | |
| 33 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 34 | 0611-227 | DECAL,HOOD SIDE-LH | 1 | $47.95 | |
| 34 | 0611-226 | DECAL,HOOD SIDE-RH | 1 | $47.95 | |
| 35 | 0611-223 | DECAL,HOOD FRONT | 1 | $61.95 | |
| 36 | 0611-224 | DECAL,DECK END-RH | 1 | $20.95 | |
| 36 | 0611-225 | DECAL,DECK END-LH | 1 | $24.95 |
