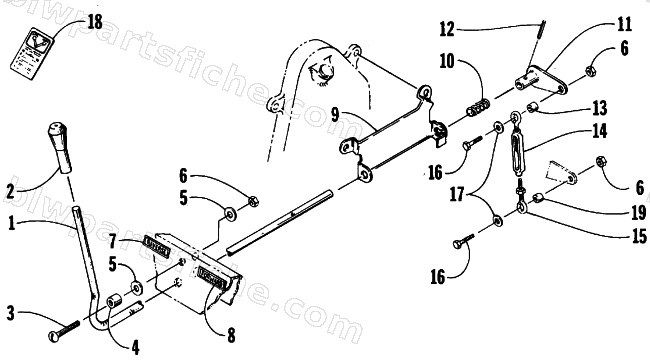

1988 Arctic Cat JAG (340 F/C) — REVERSE SHIFT LEVER ASSEMBLY
1988 JAG (340 F/C)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 4 | 0602-124 | STOP, SHIFT | 1 | $8.95 | |
| 5 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 6 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 7 | 0611-256 | DECAL,REVERSE | 1 | $11.95 | |
| 8 | 0611-257 | DECAL,FORWARD | 1 | $14.95 | |
| 9 | 0602-128 | BRACKET,SHIFT LEVER MTG | 1 | $32.95 | |
| 11 | 0702-019 | WELDMENT,ARM JAG | 1 | $43.95 | |
| 12 | 8070-314 | PIN,SPRING-3/16 X 1 SLOTTED P&O | 1 | $0.95 | |
| 13 | 0602-065 | SPACER,SHIFT LINK | 1 | $10.95 | |
| 14 | 0602-077 | SHIFTING LINK | 1 | $8.95 | |
| 15 | 0623-069 | EYEBOLT,TURNBUCKLE | 1 | $2.95 | |
| 16 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 17 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
