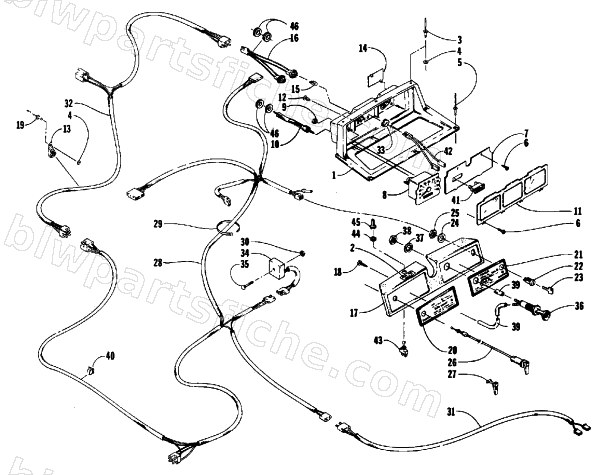

1988 Arctic Cat JAG (340 F/C) — CONSOLE AND WIRING ASSEMBLIES
1988 JAG (340 F/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 | |
| 6 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 7 | 0620-025 | PLATE,INST PANEL | 1 | $14.95 | |
| 11 | 0117-557 | LENS ASSY | 1 | $42.95 | |
| 12 | 0123-995 | RIVET,EXPANSION | 1 | $1.95 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 17 | 0117-635 | CONSOLE | 1 | $126.95 | |
| 20 | 0611-055 | DECAL, CONSOLE LH | 1 | $18.95 | |
| 21 | 0611-004 | DECAL,CONSOLE | 1 | $14.95 | |
| 22 | 0709-028 | SWITCH,IGNITION ASSY | 1 | $68.95 | |
| 23 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 24 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 25 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 26 | 0687-003 | CABLE,CHOKE-SINGLE | 1 | $68.95 | |
| 27 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 28 | 0686-023 | HARNESS,MAIN WIRE | 1 | $130.95 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 0686-008 | HARNESS,HEADLIGHT | 1 | $53.95 | |
| 33 | 0620-027 | GROMMET,CONSOLE | 1 | $1.95 | |
| 34 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 40 | 0123-394 | CLIP CABLE | 1 | $1.37 |
