1988 Arctic Cat COUGAR (500 F/C) — IGNITION, CHOKE, AND WIRING

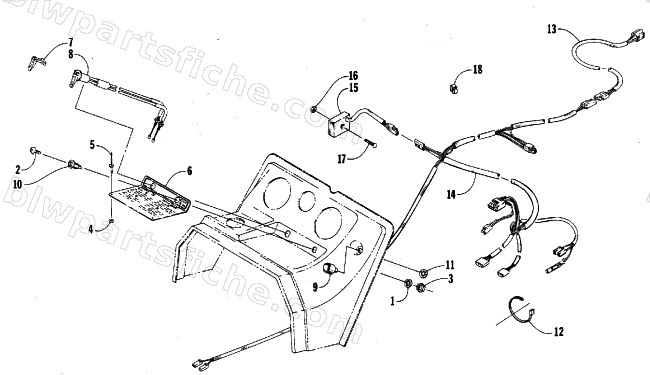

1988 COUGAR (500 F/C)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 2 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 3 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 4 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 5 | 8060-266 | RIVET,BLIND-DH AS44 BLK | 1 | $0.15 | |
| 7 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 8 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 9 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 10 | 0709-028 | SWITCH,IGNITION ASSY | 1 | $68.95 | |
| 11 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0686-014 | HARNESS,MAIN IGN. | 1 | $156.95 | |
| 15 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 16 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 18 | 0123-394 | CLIP CABLE | 1 | $1.37 |
