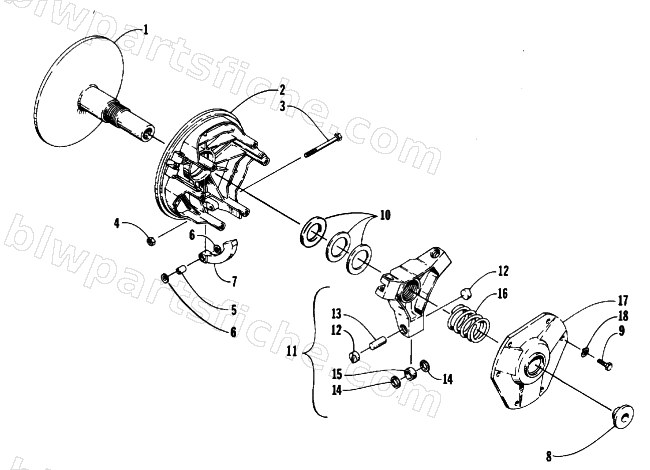

1988 Arctic Cat CHEETAH (530 L/C) — DRIVE CLUTCH
1988 CHEETAH (530 L/C)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 1 | 0746-043 | CLUTCH,DRIVE-UNCALIBRATED-ASSY(108 COMET | 1 | $909.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0646-078 | ARM, CLUTCH LOW ALTITUDE, 45GRM | 1 | $61.95 | |
| 7 | 0746-502 | ARM,CAM W/BRG 44.5 | 1 | $16.49 | |
| 7 | 0646-085 | ARM, CLUTCH 10,000 FT & OVER (COMET) | 1 | $50.95 | |
| 8 | 0146-461 | WASHER PLT | 1 | $21.95 | |
| 9 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 10 | 0646-088 | WASHER,SPACER COMET CLUTCH | 1 | $2.47 | |
| 12 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 13 | 0146-454 | PIN | 1 | $6.95 | |
| 15 | 0146-456 | ROLLER W/BRNG | 1 | $66.95 | |
| 16 | 0646-083 | SPRING,CLUTCH-RED/WHITE(COMET) | 1 | $49.95 | |
| 17 | 0646-092 | PLATE, COVER W/BEARI | 1 | $88.95 | |
| 18 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 72525 | 0725-072 | CLUTCH, DRIVE-ASSY (COMET) | 1 | $816.95 |
