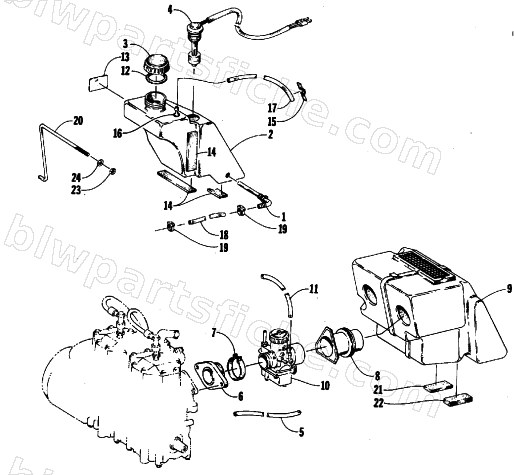

1987 Arctic Cat EL TIGRE (530) — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1987 EL TIGRE (530)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-004 | FITTING, OUTLET | 1 | $20.95 | |
| 3 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 4 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 | |
| 5 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 6 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 7 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 8 | 1670-383 | BOOT, AIR SILENCER | 1 | $136.95 | |
| 11 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 11 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 12 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 15 | 0623-014 | CLIP,OIL TANK BRKT | 1 | $3.95 | |
| 16 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 17 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 18 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 19 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 21 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 22 | 0115-408 | FOAM PAD 2.75 X 1.0 X .50 | 1 | $1.95 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
