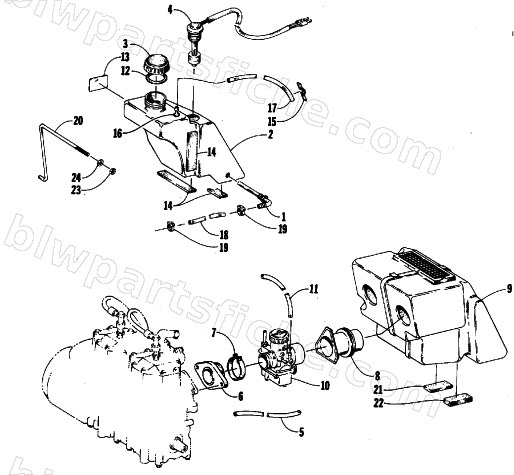

1987 Arctic Cat CHEETAH L/C — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1987 CHEETAH L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-004 | FITTING, OUTLET | 1 | $20.95 | |
| 3 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 4 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 | |
| 5 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 6 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 7 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 8 | 1670-383 | BOOT, AIR SILENCER | 1 | $136.95 | |
| 11 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 11 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 12 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 15 | 0623-014 | CLIP,OIL TANK BRKT | 1 | $3.95 | |
| 16 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 17 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 18 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 19 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 21 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 22 | 0115-408 | FOAM PAD 2.75 X 1.0 X .50 | 1 | $1.95 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
