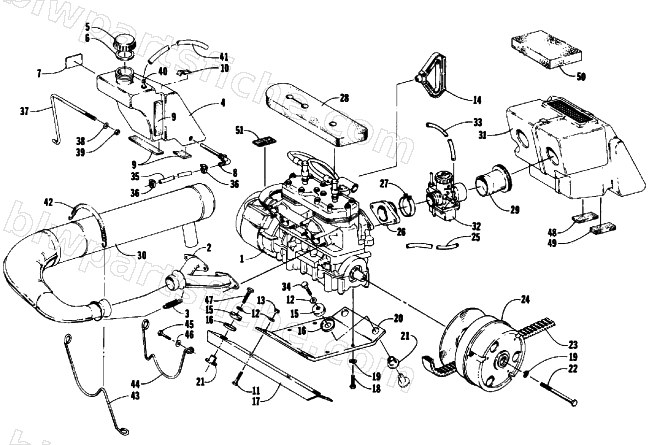

ENGINE AND RELATED PARTS
1986 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-025 | ENGINE 440 L/C | 1 | $2,126.95 | |
| 2 | 0112-616 | MANIFOLD,EXHAUST-WELDT | 1 | $151.95 | |
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 4 | 0670-003 | R/B 0636-422 | 1 | $43.89 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 0770-004 | FITTING, OUTLET | 1 | $20.95 | |
| 10 | 0623-014 | CLIP,OIL TANK BRKT | 1 | $3.95 | |
| 11 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 12 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 16 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 17 | 0608-003 | ANGLE, SUPPORT | 1 | $150.95 | |
| 18 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 19 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 20 | 0608-005 | PLATE, ENGINE | 1 | $138.95 | |
| 21 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 22 | 8004-417 | SCREW,CAP-HH 1/2-20X5.50 G5 Z&Y | 1 | $2.95 | |
| 23 | 0227-030 | BELT,DRIVE | 1 | $67.95 | |
| 24 | 0725-005 | R/B 0725-022 | 1 | $311.39 | |
| 25 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 26 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 27 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 28 | 0115-613 | SEAL RAD DUCT | 1 | $42.95 | |
| 29 | 0170-206 | BOOT,SILENCER | 1 | $29.95 | |
| 33 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 33 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 34 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 35 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 36 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 38 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 39 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 40 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 41 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 42 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 45 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 46 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 47 | 8012-224 | SCREW,CAP-HHNLP 3/8-16X1.25 G5 Z&Y | 1 | $12.35 | |
| 48 | 0115-409 | FOAM PAD 2.75 X 1.0 X .38 | 1 | $1.95 | |
| 49 | 0115-408 | FOAM PAD 2.75 X 1.0 X .50 | 1 | $1.95 |
