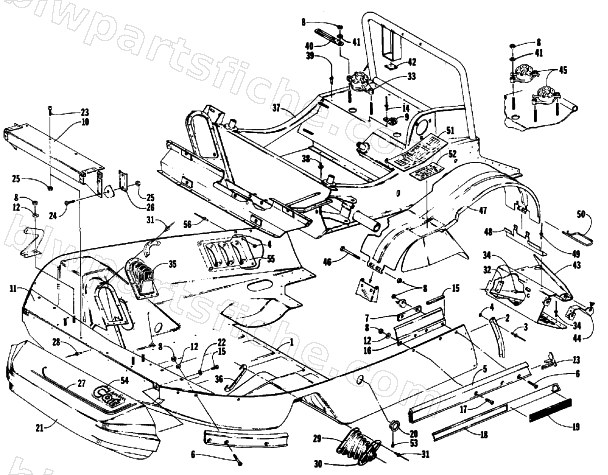

1986 Arctic Cat PANTERA — BELLY PAN AND FRONT FRAME
1986 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-048 | BELLY PAN,ROUTED | 1 | $921.95 | |
| 2 | 0115-402 | TRIM,BELLY PAN | 1 | $3.85 | |
| 3 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 0706-038 | BUMPER, FRONT RH | 1 | $163.95 | |
| 5 | 0706-039 | BUMPER, FRONT LH | 1 | $140.95 | |
| 6 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 7 | 0606-011 | SPACER, FOOTREST | 1 | $6.95 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 0706-056 | BUMPER,FRONT-ASSY | 1 | $180.95 | |
| 11 | 0706-189 | SUPPORT,HINGE-BELLYPAN | 1 | $126.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 15 | 0124-014 | SCREW,10X3/4 SELF TAP | 1 | $0.25 | |
| 17 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 21 | 0606-335 | NOSECONE,BROWN | 1 | $451.95 | |
| 22 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 23 | 8007-397 | SCREW,MACH-CRTH 10-24X.50 G2 Z&Y | 1 | $0.15 | |
| 24 | 8007-430 | SCREW,MACH-CRTH 10-24X.75 G2 BE | 1 | $0.95 | |
| 25 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 26 | 0606-044 | PLATE, BACKING | 1 | $3.95 | |
| 27 | 0611-105 | PINSTRIP, GOLD 25' | 1 | $54.95 | |
| 28 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 30 | 0605-010 | RING, STEERING | 1 | $24.77 | |
| 31 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 33 | 0170-200 | FUEL PUMP(DF52-77A) | 1 | $142.95 | |
| 34 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 36 | 0605-015 | RING, REINFORCMENT | 1 | $29.95 | |
| 38 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 39 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 40 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 41 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 43 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 46 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 48 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 49 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 50 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 51 | 0611-074 | DECAL, JET CHART | 1 | $10.95 | |
| 53 | 0623-016 | SCREW,SELF TAP #10-24X1 | 1 | $0.45 | |
| 55 | 0706-089 | LOUVER,PAINT BLACK | 1 | $37.95 |
