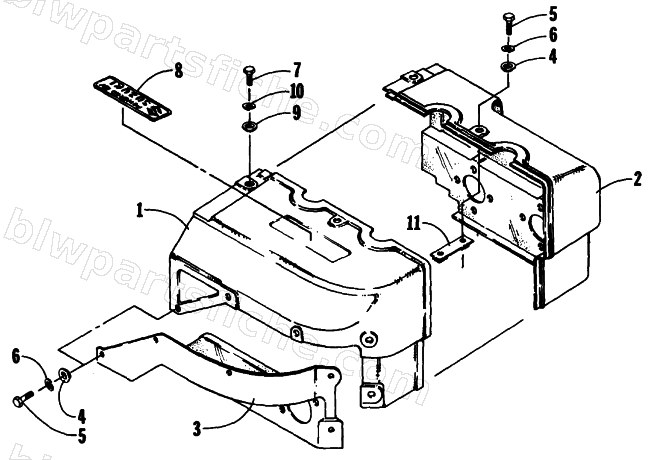

1986 Arctic Cat COUGAR — CYLINDER COWLING
1986 COUGAR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-199 | COWLING, UPPER | 1 | $198.95 | |
| 2 | 3003-293 | COWLING,REAR | 1 | $177.95 | |
| 4 | 3423-264 | WASHER,LOCK,6MM | 1 | $2.61 | |
| 5 | 3003-019 | SCREW,MACH-M6-1.0 X 12MM | 1 | $0.15 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 7 | 3006-402 | BOLT,M8 X 20 | 1 | $3.95 | |
| 9 | 3003-142 | WASHER, COWLING,8MM | 1 | $1.64 | |
| 10 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 11 | 3003-294 | STAY,VENT-COWLING | 1 | $11.95 |
