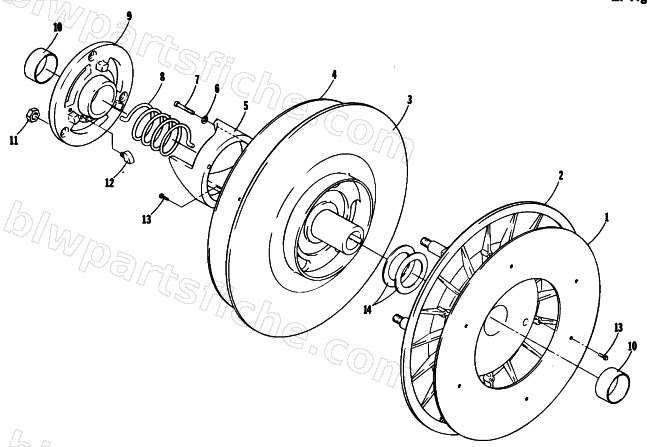

1985 Arctic Cat EL TIGRE 6000 — DRIVEN CLUTCH
1985 EL TIGRE 6000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0148-224 | COVER,MOVEABLE-SHEAVE | 1 | $63.95 | |
| 4 | 0148-225 | COVER,STATIONARY SHEAVE | 1 | $26.95 | |
| 5 | 0148-222 | TORQUE BRACKET-51 | 1 | $58.95 | |
| 6 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 7 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 8 | 0148-227 | SPRING, DRIVEN-YELLOW | 1 | $39.95 | |
| 9 | 0148-234 | BUTTON RET PLATE MACH | 1 | $56.95 | |
| 10 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 11 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 12 | 0148-177 | BUTTON,DRIVEN CLUTCH | 1 | $7.95 | |
| 13 | 0124-031 | SCREW,TAP HWH #10-24 X .375 | 1 | $13.73 | |
| 14 | 0148-199 | WASHER,FLAT-1.51 X 2.10 X .060 | 1 | $3.16 |
