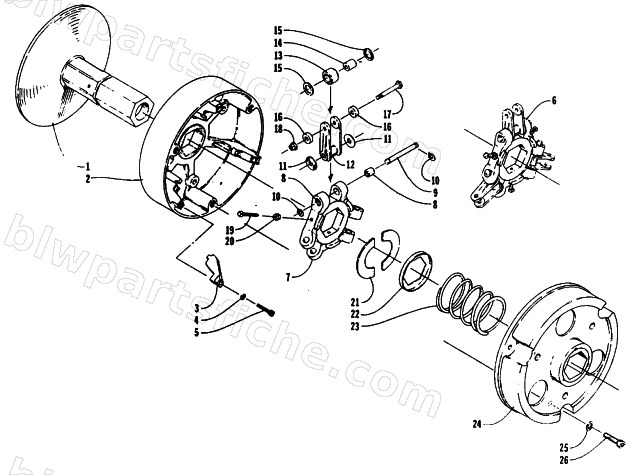

1985 Arctic Cat COUGAR — DRIVE CLUTCH
1985 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0725-003 | R/B 0725-064 | 1 | $311.39 | |
| 1 | 0646-029 | SHEAVE, STAT MACH. | 1 | $341.95 | |
| 2 | 0746-013 | SHEAVE,MOVEABLE | 1 | $342.95 | |
| 3 | 0146-414 | RAMP CLUTCH | 1 | $20.63 | |
| 3 | 0146-143 | RAMP,CLUTCH | 1 | $44.95 | |
| 4 | 8051-123 | WASHER,SPR LOCK-#8 .167X.293X.040 BLK | 1 | $0.15 | |
| 5 | 8005-341 | SCREW, CAP-HSH 8-32X.875 Z&B | 1 | $1.50 | |
| 6 | 0746-001 | SPIDER ASSEMBLY | 1 | $418.95 | |
| 7 | 0746-020 | SPIDER, W/BUSHINGS | 1 | $129.95 | |
| 8 | 0646-001 | BEARING,SPIDER ARM | 1 | $7.95 | |
| 9 | 0646-004 | PIN, CLUTCH ARM | 1 | $13.73 | |
| 10 | 0623-002 | RING,RETAIN. EXTNL | 1 | $0.65 | |
| 11 | 0646-002 | ARM, COMET #A-3 | 1 | $36.95 | |
| 12 | 0636-424 | CLUTCH ARM KIT,REBUILD | 1 | $101.95 | |
| 13 | 0146-421 | ROLLER BRG ASSY | 1 | $41.95 | |
| 14 | 0146-703 | BUSHING,UPPER-CLUTCH | 1 | $15.11 | |
| 15 | 0146-522 | WASHER-ROLLER BUSHING | 1 | $5.23 | |
| 16 | 0146-278 | WEIGHT 6.475GMX.549 BLACK | 1 | $5.09 | |
| 17 | 0146-146 | PIN,UPPER ROLLER ARM | 1 | $9.59 | |
| 18 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 19 | 0123-622 | SCREW,SET 10-24X1-1/4 SQ HD | 1 | $2.95 | |
| 20 | 8042-246 | NUT,10-24 HEX-REG-GR5 Z&Y | 1 | $0.15 | |
| 21 | 0146-267 | WASHER, CUP-CLUTCH | 1 | $5.95 | |
| 22 | 0146-212 | RING,SPLIT | 1 | $12.35 | |
| 24 | 0146-541 | ASSY,HOUSING/BRG | 1 | $240.95 | |
| 25 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 26 | 8005-611 | SCREW, CAP-HSH 5/16-18X.875 Z&B | 1 | $0.45 |
