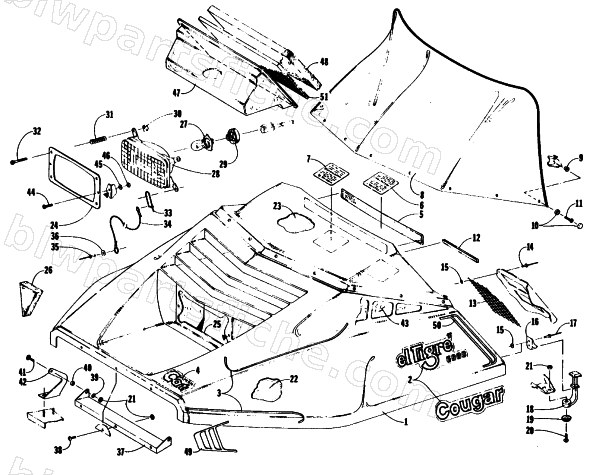

HOOD ASSEMBLY
1985 COUGAR SPECIAL EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 9 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 10 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 11 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 13 | 0115-632 | VENT GUARD 81 ET 6 RH | 1 | $39.95 | |
| 14 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 18 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 19 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 20 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0617-008 | FOAM, HOOD | 1 | $14.95 | |
| 24 | 0116-867 | HEADLIGHT BEZEL | 1 | $47.95 | |
| 27 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 29 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 30 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 31 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 32 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 33 | 0115-528 | CABLE HOOK | 1 | $13.95 | |
| 35 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 36 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 37 | 0716-002 | HINGE, HOOD | 1 | $55.95 | |
| 38 | 8008-580 | SCREW,MACH-SLTH 1/4-20X.75 G2 Z&Y | 1 | $0.68 | |
| 39 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 40 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 41 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 44 | 8009-430 | SCREW,MACH-CRPH 10-24X.75 G2 Z&BLK | 1 | $0.95 | |
| 46 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 |
