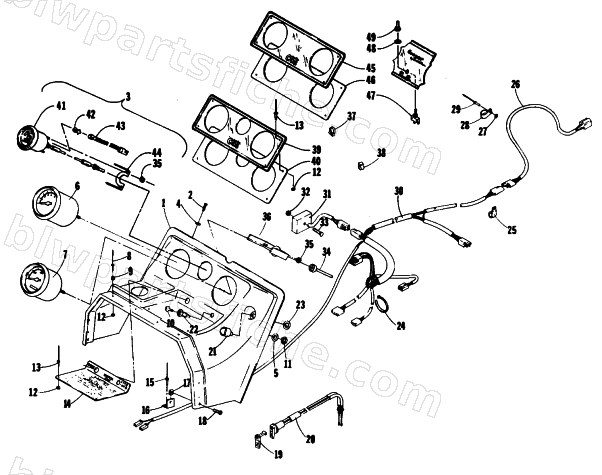

1985 Arctic Cat COUGAR SPECIAL EDITION — CONSOLE AND WIRING ASSEMBLIES
1985 COUGAR SPECIAL EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0117-031 | CONSOLE INSTRUMENT | 1 | $94.95 | |
| 2 | 0123-875 | SCREW,METAL HEX #10X5/8 | 1 | $0.15 | |
| 4 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 5 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 6 | 0620-002 | TACHOMETER | 1 | $407.95 | |
| 7 | 0620-003 | SPEEDOMETER | 1 | $252.95 | |
| 8 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 9 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 10 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 11 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 12 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 13 | 8060-266 | RIVET,BLIND-DH AS44 BLK | 1 | $0.15 | |
| 14 | 0212-564 | PLATE, IGNITION | 1 | $7.19 | |
| 15 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 17 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 18 | 8008-607 | SCREW,MACH-SLTH 1/4-20X.50 G2 BE | 1 | $0.15 | |
| 19 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 20 | 0109-722 | CABLE,CHOKE-23'' | 1 | $86.95 | |
| 21 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 22 | 0709-028 | SWITCH,IGNITION ASSY | 1 | $68.95 | |
| 23 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 27 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 28 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 30 | 0232-024 | HARNESS,MAIN | 1 | $185.95 | |
| 31 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 32 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 37 | 0510-589 | CLAMP,TYLON SNP-34 OG | 1 | $2.99 | |
| 38 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 41 | 0620-024 | GAUGE, WATER TEMP. | 1 | $362.95 | |
| 42 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 43 | 0609-002 | LAMP CORD ASSY | 1 | $28.95 | |
| 44 | 0620-005 | BRKT,TEMP GUAGE | 1 | $6.95 | |
| 47 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 48 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 49 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 |
