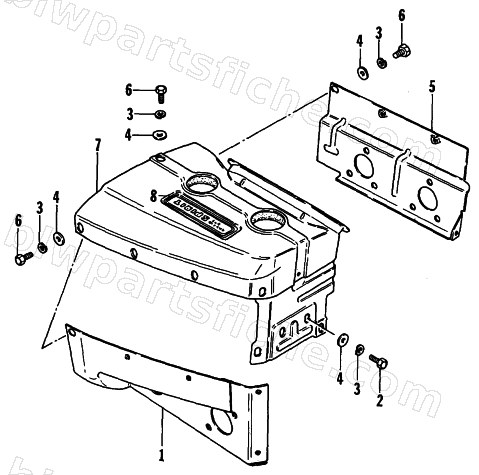

1984 Arctic Cat PANTHER — CYLINDER COWLING
1984 PANTHER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-851 | COWLING-VENT-FRONT | 1 | $77.95 | |
| 2 | 3003-019 | SCREW,MACH-M6-1.0 X 12MM | 1 | $0.15 | |
| 3 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 4 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 5 | 3002-852 | COWLING VENT-REAR | 1 | $48.95 | |
| 6 | 3007-392 | BOLT | 1 | $3.95 | |
| 7 | 3005-010 | COWLING, VENTILATION UPPER | 1 | $184.95 |
