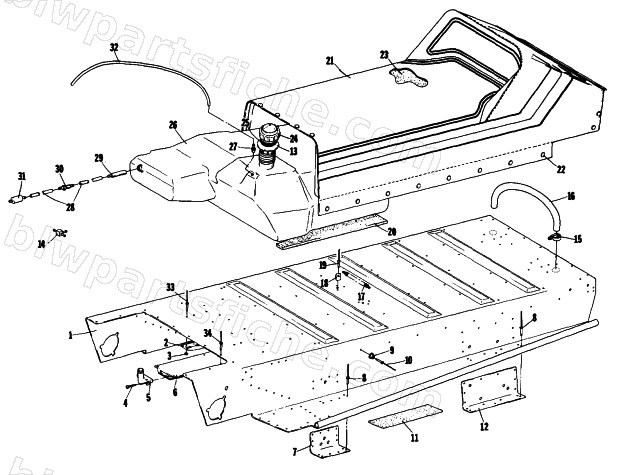

1984 Arctic Cat EL TIGRE 6000 — TUNNEL, GAS TANK AND SEAT
1984 EL TIGRE 6000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 0117-996 | CAP END | 1 | $101.95 | |
| 6 | 0706-104 | HEAT EXCH ASSY | 1 | $255.95 | |
| 7 | 0106-930 | PLATE, MOUNTING | 1 | $13.95 | |
| 8 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 9 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 13 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 14 | 0109-332 | T CONN,GAS LINE | 1 | $3.02 | |
| 17 | 0123-808 | SPRING,EXT HOOK-.28DX4 FL | 1 | $3.95 | |
| 18 | 0116-949 | BRACKET,GAS TANK-MTG | 1 | $4.95 | |
| 19 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 22 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 24 | 0670-136 | CAP,GAS W/GAUGE | 1 | $84.95 | |
| 25 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 27 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 28 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 29 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 30 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 31 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 32 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 33 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 |
