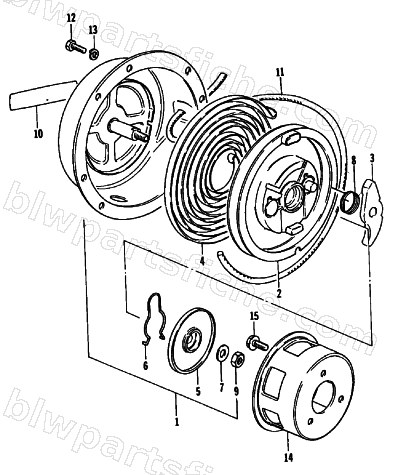

1984 Arctic Cat EL TIGRE 6000 — RECOIL STARTER
1984 EL TIGRE 6000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-915 | STARTER ASS'Y, RECOIL | 1 | $305.95 | |
| 4 | 3002-921 | SPRING,STARTER | 1 | $46.95 | |
| 5 | 3003-181 | PLATE,DRIVE | 1 | $17.87 | |
| 6 | 3004-729 | RATCHET SET(w/o friction plate) | 1 | $49.95 | |
| 7 | 3007-410 | WASHER | 1 | $2.75 | |
| 9 | 3007-684 | NUT,10MM | 1 | $3.16 | |
| 11 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 13 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 14 | 3004-819 | PULLEY, STARTER | 1 | $79.95 | |
| 15 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 |
