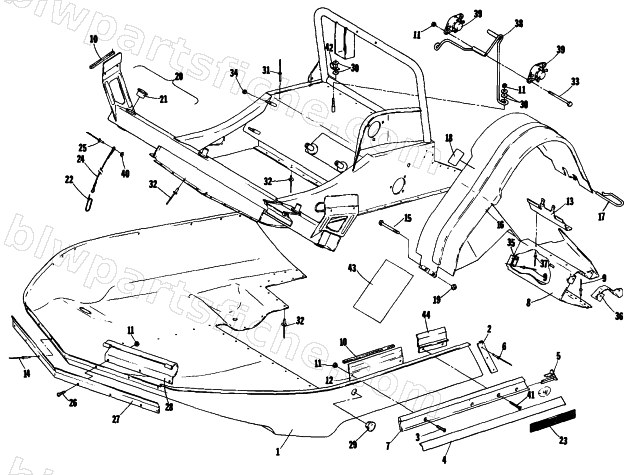

1984 Arctic Cat EL TIGRE 6000 — BELLY PAN, FRONT FRAME
1984 EL TIGRE 6000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 6 | 8060-266 | RIVET,BLIND-DH AS44 BLK | 1 | $0.15 | |
| 7 | 0106-880 | BUMPER,FRONT | 1 | $266.95 | |
| 8 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 9 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0107-769 | BRKT,CLUTCH SHIELD-REAR | 1 | $4.29 | |
| 14 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 15 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 22 | 0115-528 | CABLE HOOK | 1 | $13.95 | |
| 25 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 26 | 8008-609 | SCREW,MACH-SLTH 1/4-20X.625 G2 BE | 1 | $0.95 | |
| 30 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 31 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 32 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 | |
| 37 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 39 | 0115-631 | FUEL PUMP(DF52-89) | 1 | $158.95 | |
| 40 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 41 | 0123-190 | SCREW,MACH FT HD 1/4-20X1-3/8 | 1 | $0.45 | |
| 44 | 0115-635 | HOOD,CHANNEL | 1 | $21.95 |
