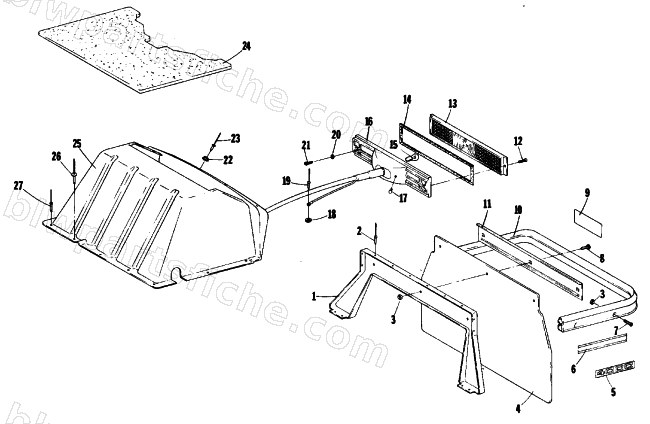

1981 Arctic Cat TRAIL CAT — TAILLIGHT, TOOLBOX, REAR BUMPER
1981 TRAIL CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 8011-070 | BOLT,CRG 1/4-20X.75 GR1 BLK | 1 | $0.26 | |
| 12 | 0123-920 | SCREW,PAN HD 8X5/8 | 1 | $0.15 | |
| 14 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 15 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 17 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 | |
| 18 | 8052-122 | WASHER,LOCK-NO.8 INTL TOOTH TYP A Z&Y | 1 | $0.40 | |
| 19 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 20 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 21 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 22 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 23 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 26 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 27 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 |
