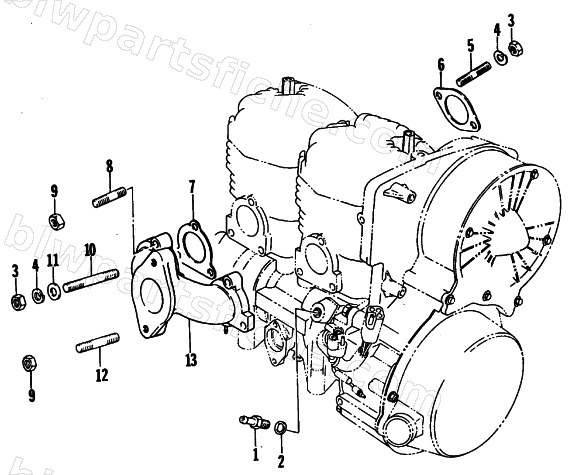

1981 Arctic Cat TRAIL CAT — INTAKE MANIFOLD
1981 TRAIL CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 5 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 6 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 7 | 3005-952 | GASKET, INTAKE MANIFOLD | 1 | $19.25 | |
| 8 | 3003-299 | STUD BOLT,M6X55 | 1 | $2.95 | |
| 9 | 3002-863 | NUT,HEX M6 W/WASHER FACE | 1 | $1.95 | |
| 10 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 11 | 3423-204 | WASHER | 1 | $1.95 | |
| 12 | 3007-480 | BOLT,STUD | 1 | $2.06 |
