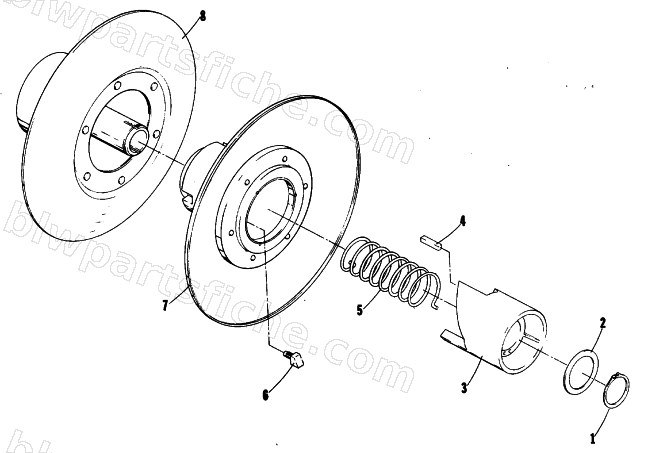

1981 Arctic Cat TRAIL CAT — DRIVEN CLUTCH
1981 TRAIL CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0123-594 | RING RETAINING | 1 | $12.95 | |
| 4 | 0148-122 | KEY 3/16X3/16X1 | 1 | $2.95 | |
| 6 | 0148-148 | SLIDE,SHOE RAMP | 1 | $16.49 | |
| 7 | 0148-159 | SHEAVE ASSY,MOVABLE | 1 | $240.95 |
