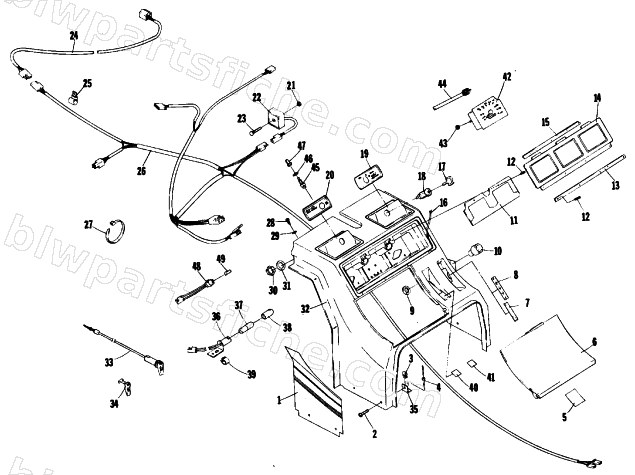

1981 Arctic Cat TRAIL CAT — CONSOLE AND WIRING
1981 TRAIL CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8008-607 | SCREW,MACH-SLTH 1/4-20X.50 G2 BE | 1 | $0.15 | |
| 3 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 4 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 6 | 0115-342 | DOOR,CONSOLE-BLACK | 1 | $58.95 | |
| 9 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 10 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 12 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 14 | 0117-385 | LENS,CONSOLE ASSY | 1 | $124.95 | |
| 15 | 0106-638 | GASKET MAT'L-5FT LENGTH | 1 | $5.59 | |
| 17 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 18 | 0709-028 | SWITCH,IGNITION ASSY | 1 | $68.95 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0123-875 | SCREW,METAL HEX #10X5/8 | 1 | $0.15 | |
| 29 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 30 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 31 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 32 | 0606-141 | CONSOLE,BLACK-87SJ | 1 | $433.79 | |
| 33 | 0687-003 | CABLE,CHOKE-SINGLE | 1 | $68.95 | |
| 34 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 37 | 0115-385 | BULB,CONSOLE | 1 | $10.97 | |
| 39 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 44 | 0120-286 | CABLE,SPEEDOMETER DRI | 1 | $102.95 | |
| 45 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 46 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 47 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 48 | 0232-021 | ASSY LAMP | 1 | $64.95 | |
| 49 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 |
