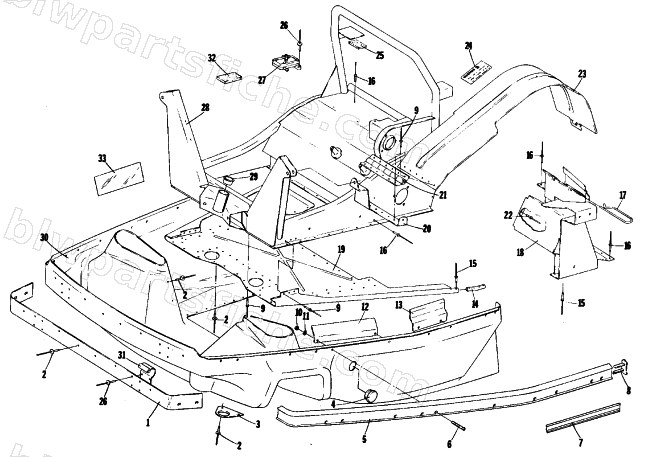

1981 Arctic Cat TRAIL CAT — BELLY PAN AND FRONT FRAME
1981 TRAIL CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 5 | 0114-438 | BUMPER,FRONT FORMED | 1 | $145.95 | |
| 6 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 7 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 8 | 0117-128 | CAP END BUMPER-RIGHT | 1 | $2.95 | |
| 8 | 0117-129 | CAP END BUMPER-LEFT | 1 | $2.95 | |
| 9 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 10 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 16 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 22 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 26 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 27 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 33 | 0716-358 | FOIL,6" X 18" (0619-727) | 1 | $14.95 |
