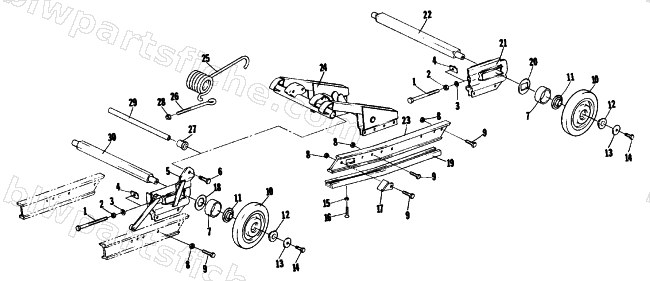

1981 Arctic Cat JAG L/T — UNDERCARRIAGE EXTENSION
1981 JAG L/T
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 2 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 3 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 4 | 0104-838 | PLATE & NUT-WELDMENT | 1 | $21.95 | |
| 6 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 7 | 0114-147 | SPACER,REAR AXLE | 1 | $19.25 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 10 | 0114-210 | WHEEL,IDL 6.38(2-3/4DIA INSR) | 1 | $54.95 | |
| 11 | 0104-342 | INSERT 3/4 BORE X 2 OD | 1 | $15.11 | |
| 12 | 0104-343 | INSERT,3/4 BORE X 1.570 OD | 1 | $13.73 | |
| 14 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 18 | 0104-784 | WASHER,HEX .890 X 1.25 X 12 GA | 1 | $0.15 | |
| 20 | 0114-130 | WASHER,RECT 1.015 X 1.62 12GA | 1 | $2.95 | |
| 21 | 0114-120 | HOUSING,REAR AXLE WELDED RH | 1 | $100.95 | |
| 21 | 0114-121 | HOUSING,REAR AXLE WELDED LH | 1 | $82.95 | |
| 22 | 0114-128 | AXLE,REAR | 1 | $161.95 | |
| 26 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 27 | 0114-162 | BUSHING,AXLE | 1 | $5.95 | |
| 28 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 |
