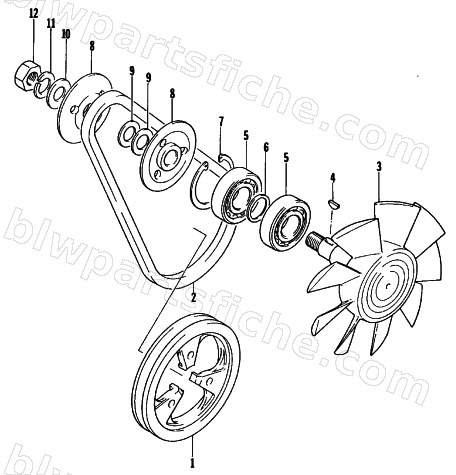

1981 Arctic Cat JAG L/T — COOLING FAN
1981 JAG L/T
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-702 | PULLEY,COOLING FAN DRIVE | 1 | $46.95 | |
| 2 | 3002-854 | BELT,COOLING FAN | 1 | $53.95 | |
| 3 | 3003-285 | FAN ASSY,COOLING | 1 | $563.95 | |
| 4 | 3000-266 | KEY(FASTENER) | 1 | $3.30 | |
| 5 | 3002-750 | BEARING,BALL,M20X42X12 | 1 | $41.95 | |
| 6 | 3002-179 | SPACER,M20.2X30X2,WASHER | 1 | $4.95 | |
| 7 | 3004-479 | CIRCLIP,FASTENER | 1 | $3.95 | |
| 8 | 3002-782 | PULLEY DRIVEN | 1 | $30.95 | |
| 9 | 3002-728 | SHIM 16X25X.5 SPG STL(WASHER) | 1 | $3.71 | |
| 10 | 3005-956 | WASHER, COOL FAN-10 MM | 1 | $2.95 | |
| 11 | 3002-565 | PISTON PIN | 1 | $24.95 | |
| 12 | 3008-209 | NUT,10MM | 1 | $3.16 |
