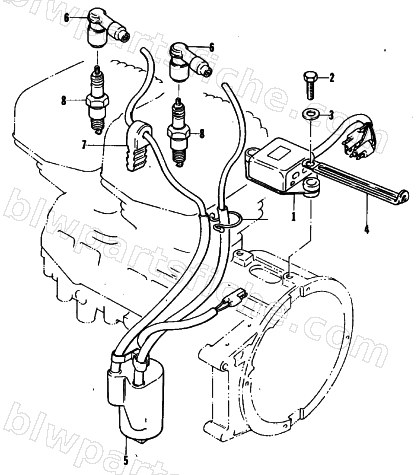

1981 Arctic Cat EL TIGRE F/C — ELECTRICAL
1981 EL TIGRE F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3003-029 | BOLT, HEX,M6X20 | 1 | $4.54 | |
| 3 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 4 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 5 | 3003-712 | COIL,IGNITION | 1 | $391.95 | |
| 6 | 3003-175 | CAP,SPARK PLUG LB05EZ | 1 | $12.35 | |
| 8 | 0217-035 | SPARK PLUG BR9ES(SCREW CAP) | 1 | $12.35 |
