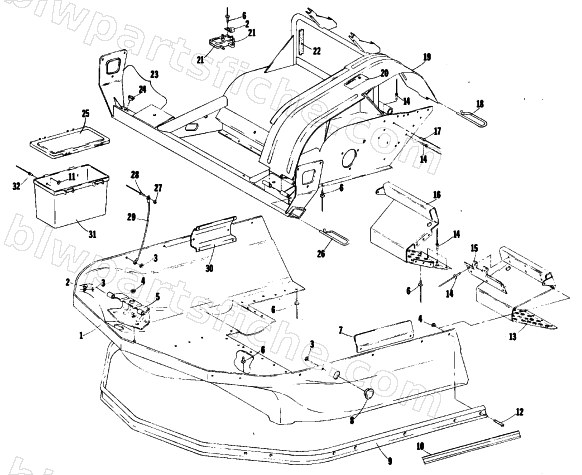

1980 Arctic Cat JAG 3000 F/C — BELLY PAN AND FRONT FRAME
1980 JAG 3000 F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0106-559 | HINGE-LOWER | 1 | $155.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 10 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 13 | 0116-905 | FOOTREST-LEFT | 1 | $75.95 | |
| 14 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 17 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 18 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 21 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 25 | 0106-766 | COVER, TOOLBOX | 1 | $82.95 | |
| 26 | 8001-056 | SCREW,CAP-HH 1/4-20X5.0 G2 Z&Y | 1 | $1.09 | |
| 27 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 29 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 32 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
