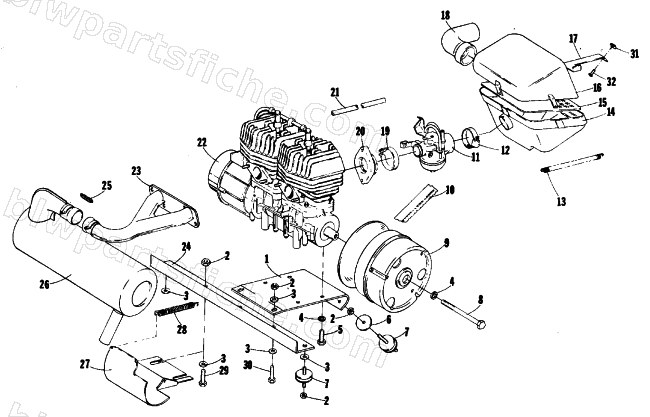

1980 Arctic Cat JAG 3000 F/A — ENGINE AND RELATED PARTS
1980 JAG 3000 F/A
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 3 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 4 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 5 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 6 | 0123-020 | CARRIAGE SPRING WASHER | 1 | $13.73 | |
| 8 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 10 | 0227-014 | BELT,DRIVE | 1 | $61.95 | |
| 13 | 0109-839 | SPRING,EXTENSION-24 | 1 | $13.73 | |
| 19 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 20 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 23 | 0112-372 | MANIFOLD ASSY | 1 | $252.95 | |
| 25 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 26 | 0112-371 | MUFFLER,ASSY | 1 | $274.95 | |
| 28 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 29 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 30 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 31 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 32 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 |
