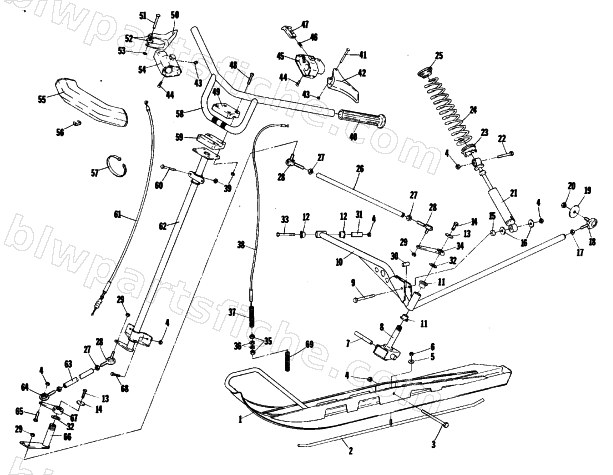

1979 Arctic Cat TRAIL CAT — SKI AND STEERING
1979 TRAIL CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0103-303 | SKI,WELDMENT | 1 | $409.95 | |
| 2 | 1703-527 | SKAG-PTD BLK | 1 | $14.95 | |
| 3 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 6 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 7 | 0103-277 | SPACER,SPINDLE TUBE | 1 | $64.95 | |
| 12 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 14 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 15 | 0114-312 | SPACER,FRONT-SHOCK MTG | 1 | $16.49 | |
| 16 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 17 | 0623-176 | NUT,JAM 1/2-20 | 1 | $1.92 | |
| 18 | 0105-327 | END ROD | 1 | $90.95 | |
| 19 | 0123-160 | WASHER,FLAT 1/2 IDX10GA | 1 | $3.85 | |
| 20 | 8040-636 | NUT,HEX LOCK-NYL 1/2-20 Z&Y | 1 | $0.15 | |
| 22 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 0403-099 | RETAINER,SPRING-ADJUSTABLE | 1 | $17.95 | |
| 25 | 0117-155 | RETAINER SPRING | 1 | $1.95 | |
| 26 | 0105-330 | TIE ROD,15.625 IN | 1 | $53.95 | |
| 27 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 28 | 0103-273 | END TIE ROD W/STUD | 1 | $61.95 | |
| 29 | 8040-516 | NUT,HEX LOCK-NYL 3/8-24 Z&Y | 1 | $0.68 | |
| 31 | 0114-321 | SPACER,FRONT STRUT | 1 | $5.95 | |
| 35 | 3007-416 | NUT | 1 | $2.75 | |
| 37 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 38 | 0115-183 | CABLE,BRAKE | 1 | $70.95 | |
| 39 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 40 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 41 | 0123-927 | PIN,1/4 DIA-BRAKE HANDLE | 1 | $6.34 | |
| 42 | 0115-170 | LEVER,BRAKE | 1 | $37.95 | |
| 43 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 45 | 0117-287 | SWITCH,BRAKE | 1 | $192.95 | |
| 46 | 0109-608 | SPRING,PARKING BRAKE | 1 | $3.30 | |
| 47 | 0115-278 | ACTUATOR PARK BRKE | 1 | $10.97 | |
| 51 | 0123-918 | PIN,LEVER | 1 | $15.11 | |
| 53 | 0123-810 | RING RETAINING 3/16 EXT | 1 | $0.45 | |
| 54 | 0709-040 | SWITCH,THROTTLE ASSY | 1 | $208.95 | |
| 55 | 0117-025 | PAD HANDLEBAR | 1 | $74.95 | |
| 57 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 60 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 61 | 0187-048 | CABLE,THROTTLE | 1 | $97.95 | |
| 64 | 0105-328 | JOINT BALL | 1 | $68.95 | |
| 67 | 0105-334 | ARM,SPINDLE-MACH | 1 | $49.95 | |
| 68 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 69 | 0123-407 | SPRING,COMPRESSION 5/16IDX3 | 1 | $0.45 |
