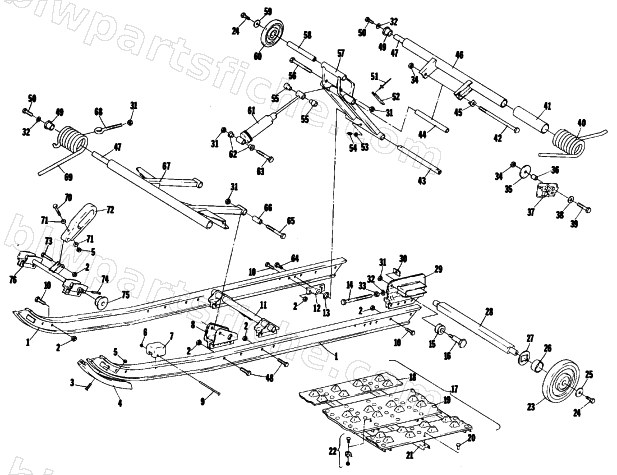

1979 Arctic Cat PANTHER — UNDERCARRIAGE AND TRACK
1979 PANTHER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 3 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 7 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 9 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 10 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 13 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 14 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 16 | 0104-842 | BOLT,SHOULDER | 1 | $26.95 | |
| 17 | 0102-252 | TRACK ASS'Y,W/ICE STUDS | 1 | $0.00 | |
| 20 | 0123-729 | RIVET,SOLID .187X.562 STL | 1 | $1.78 | |
| 23 | 0114-210 | WHEEL,IDL 6.38(2-3/4DIA INSR) | 1 | $54.95 | |
| 24 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 27 | 0114-130 | WASHER,RECT 1.015 X 1.62 12GA | 1 | $2.95 | |
| 30 | 0104-838 | PLATE & NUT-WELDMENT | 1 | $21.95 | |
| 31 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 32 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 33 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 34 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 35 | 0623-746 | WASHER,2.00X.386X.1046 | 1 | $2.06 | |
| 36 | 0114-072 | TUBE,PIVOT-SPRING ADJUSTR | 1 | $10.95 | |
| 37 | 0114-062 | ADJUSTER,RH RR SUSP | 1 | $37.95 | |
| 37 | 0114-063 | ADJUSTER,LH RR SUSP | 1 | $37.95 | |
| 38 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 39 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 41 | 0114-160 | SLEEVE,SPRING | 1 | $12.35 | |
| 43 | 0114-170 | AXLE,REAR ARM PIVOT | 1 | $85.95 | |
| 45 | 0123-863 | WASHER,TAB LOCK | 1 | $3.16 | |
| 48 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 49 | 0114-162 | BUSHING,AXLE | 1 | $5.95 | |
| 50 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 51 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 52 | 0104-073 | PAD,SHOCK | 1 | $21.95 | |
| 53 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 54 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 57 | 0114-094 | SUPPORT,IDLER WHEEL | 1 | $125.95 | |
| 59 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 61 | 0114-124 | SHOCK ABSORBER,RR ARM | 1 | $99.95 | |
| 63 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 64 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 65 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 66 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 67 | 0114-216 | ARM,FRONT WELDMENT | 1 | $305.95 | |
| 68 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 69 | 1704-162 | SPRING,SUSPENSION- FRT-RH PTD BLK | 1 | $59.95 | |
| 69 | 1704-163 | SPRING,SUSPENSION- FRT-LH PTD BLK | 1 | $57.95 | |
| 70 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 71 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 73 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 74 | 8070-285 | PIN,SPRING-5/32 X 1-1/8 SLOTTED P&O | 1 | $1.95 | |
| 75 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 76 | 0704-627 | CROSSBRACE,FRONT-WELDMENT(0104-910) | 1 | $110.95 |
