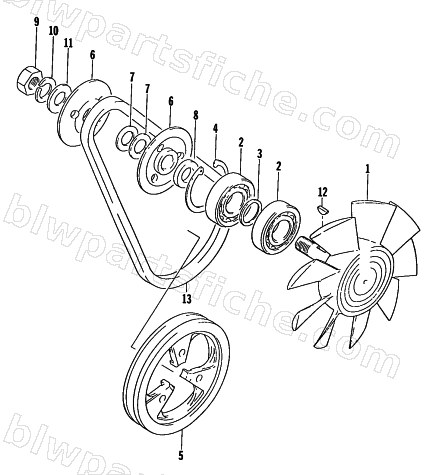

1979 Arctic Cat PANTERA — COOLING FAN
1979 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-408 | FAN ASSEMBLY, COOLING | 1 | $188.95 | |
| 2 | 3000-434 | BEARING,BALL,M20X47X14 | 1 | $46.95 | |
| 3 | 3002-179 | SPACER,M20.2X30X2,WASHER | 1 | $4.95 | |
| 5 | 3005-702 | PULLEY,COOLING FAN DRIVE | 1 | $46.95 | |
| 6 | 3002-155 | PULLEY,FAN DRIVEN | 1 | $29.95 | |
| 7 | 3002-728 | SHIM 16X25X.5 SPG STL(WASHER) | 1 | $3.71 | |
| 8 | 3002-180 | SPACER,M14.5X30X3.2,WASHER | 1 | $2.95 | |
| 9 | 3007-556 | NUT | 1 | $3.95 | |
| 10 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 11 | 3007-902 | WASHER-14MM | 1 | $2.95 | |
| 12 | 3000-266 | KEY(FASTENER) | 1 | $3.30 | |
| 13 | 3002-156 | BELT,COOLING FAN | 1 | $51.95 |
